CNG Ground Cascade Storage

General Description

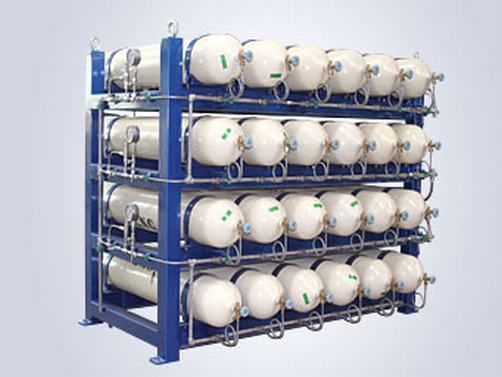

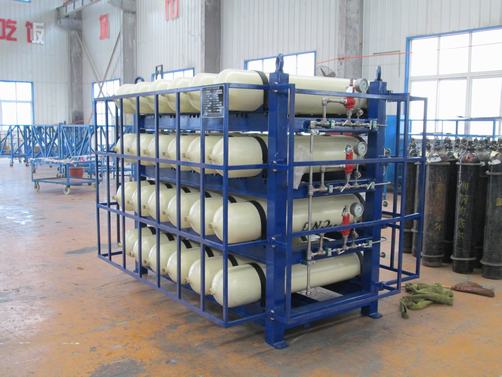

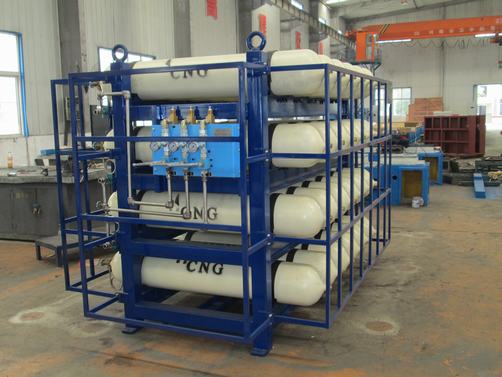

CNG ground cascade consists of a series of natural gas cylinders, steel frame, valves, pressure gauge, pipelines and high-pressure fittings. Priority sequence control panel can also be installed according to customers' requirements. CNG cascade is used for ground storage of compressed natural gas. Due to the government’s requirement of stationary CNG storage cascades should be located outdoors at ground, the steel cylinders with 250 bar operation pressure are widely used so far.

Features of Ground Storage:

1. CNG cylinder cascade is commonly installed in utility companies or other locations including automotive service stations, bus depots, and fleet garages.
2. The CNG storage cascade is features by robust build quality, higher pressure compared with CNG cylinder for vehicles.
3. CNG storage cascade should be kept away from rain and fierce sunlight. In addition, it should be away from fire source and high temperature.
4. The operating pressure of CNG cascade is 250bar.


It is composed of gas cylinders, steel racks and fittings. Fittings include high-pressure stainless pipe, ball valves, HP joints and connectors, safety valve, pressure gauge and valves, etc.

Normal water capacity of each unit:

1. 1200Liters, 2000Liters, 3000Liters, 4000Liters
2. Cascade of different dimensions could be manufactured according to per buyers’ requirements.

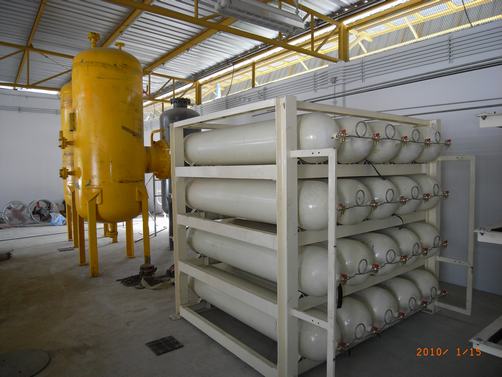

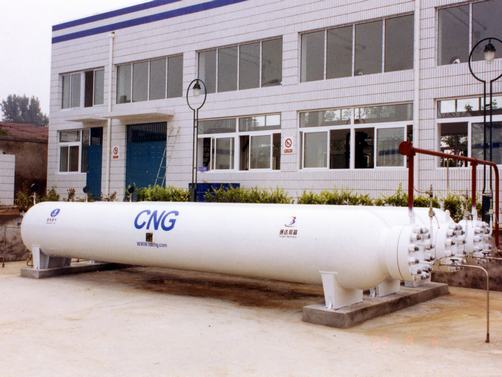

  CNG Ground Cascade Storage is designed for CNG refueling station to store high pressure gas for filling vehicles.

Specifications of CNG Cylinder for refueling station:

Main Technical Parameters For CNG Cylinder Cascade:
Product Name: Cylinder Cascade
Materials: 30CrMo (4130X)and etc.
Single Cylinder Specifications:  50,8,120,167,1300WL
Category:  Refueling Station component
About this product:
Cylinder manufacturing standard: BS5045/ASME
Unit Water capacity:   1200Liters/2000Liters/3000Liters/4000Liters
Working pressure: 25Mpa
Test pressure: 27.5Mpa
