Type D CNG Compressors

Type D CNG Compressors
prev
next

General Description

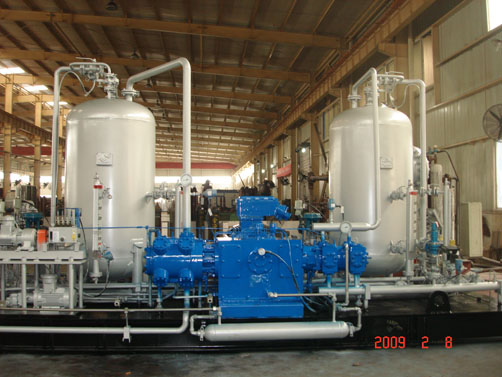

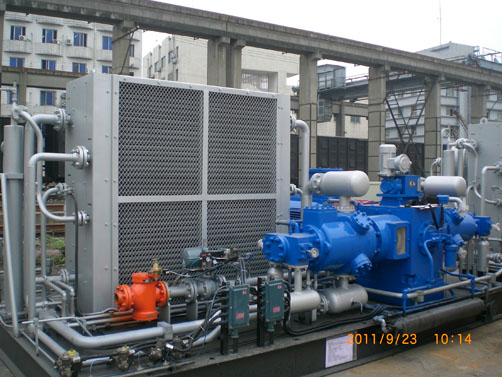

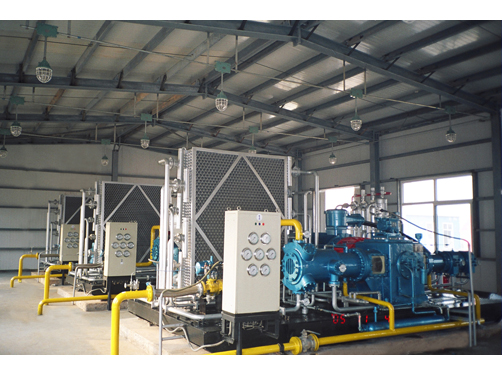

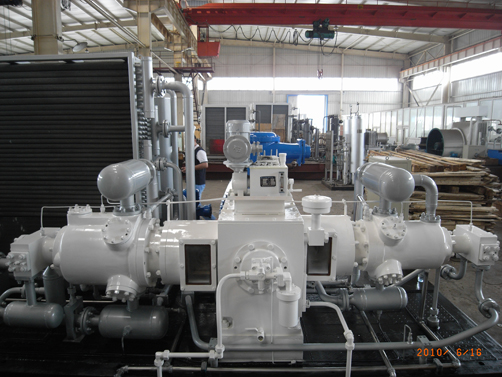

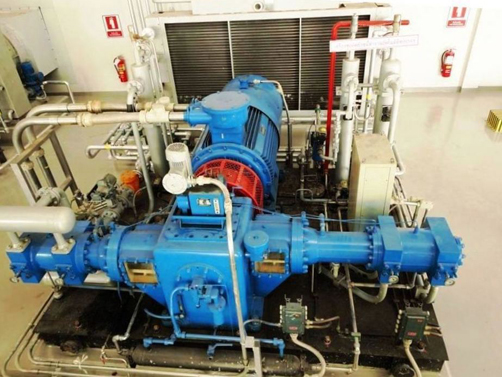

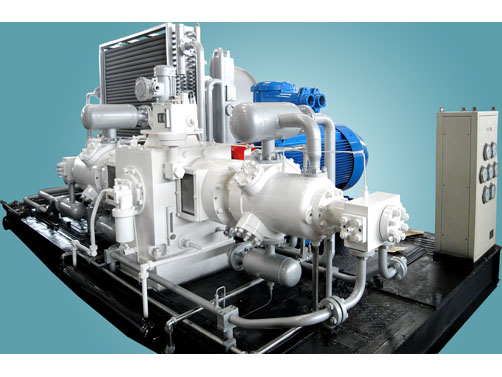

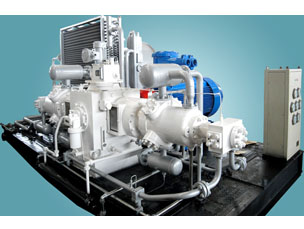

Available with capacity between 700 and 4500Nm3/h, the type D CNG compressor is ideal for medium and large sized CNG filling stations as well as CNG mother stations. As a kind of horizontally symmetrical reciprocating compressor,it is mainly composed of the compression unit, anti-explosive electric motor, cooling unit, lubrication unit, internal connection pipeline, safety valve, and the blow-down valve. All these components are skid-mounted on a common base, thus facilitating installation and transportation. The PLC control cabinet is usually positioned inside the control room of CNG filling stations so as to realize remote control on the CNG compressor.

Features:

Our compressors feature large capacity, low vibration, high efficiency, aesthetical design, and compact structure. Also, they support long term continuous operation due to reliable and stable performance. User-friendly designed, they are convenient for maintenance, and require low operation cost. Their parts are available at very competitive prices. The PLC control system ensures higher safety and stability.

Advantages

1. We have been in compressor manufacturing industry for over four decades, and up to now, we have supplied over 2500 sets of compressors for national and international clients. We have won 40% of the market share in China.
2. Due to our powerful development capacity as well as our close cooperation with China famous universities such as Xi'an Jiaotong University, Sichuan University, Sichuan University of Science and Engineering, etc., we have achieved a leading position in compressor manufacturing technologies. In the filed for CNG filling stations, we were the earliest Chinese developer of horizontally symmetrical type D CNG compressor for mother stations and type XD CNG compressor for daughter stations.
3. We operate in strict conformation with TQM (Total Quality Management), TPM (Total Productive Management), and TPS (Toyota Production System) management systems which are widely used by American, Japanese and Korean enterprises.
4. Before leaving factory, all of our compressor has to undergo heavy load tests to avoid any possible failures. This is one of the reasons why our range of compression equipment has reliable performance.
5. Our gas compressors are available with performance test reports provided by a third party, as well as pre-delivery tests such as SGS and OMIC. UAccording to clients' specific requirement, we can also provide ABS and CCS certifications.
6. Our compressor systems are equipped with key components of international or domestic famous brands to offer enhanced reliability. By now, we have established cooperation with ParKer (American), HOERBIGER (German), DK-LOK (South Korean), mercer (American), STAUFF (German), Siemens (German), Jiamusi Electric Machine Company Limited, Wuxi Xi Shan Anda Explosion-proof Electrical Equipment Co., Ltd., Nanyang Explosion Protection Group Co., Ltd., Xi Chi Electric Co., Ltd., and Sichuan Injet Electric Co., Ltd. The partnership with national and international industry leaders provides us great advantages in market competition.
7. We have a complete after sales network in mainland China, covering all provinces and areas. Also, we have built after sales centers in countries such as Thailand, Pakistan, Uzbekistanbekistan and so on. Chinese or local personnel are available for equipment maintenance and repairing. Technical supports and assistance in Chinese, English, Russia, etc. are available. Free maintenance and operation trainings are provided as well.

Technical Specifications

Range: 700-4500 Nm3/hr
Motor power: 160-355kw
Inlet pressure: ≥0.1Mpa
Motor: Electric motor driven/gas engine driven
Cooling model: water or air cooled
Stages:2- 4 stage compression
Skid: Compact skid design

Series No Compressor model Inlet Pressure (MPa) Motor Power (kW) Capacity (Nm3/h) Rotation Speed (rpm) Stroke (mm) Compression Stage
1 D-4.2/2-250Ⅱ 0.20  160  700  980  140  4_Stage
2 D-4.8/2-250 0.20  185  800  590  180  4_Stage
3 D-5.4/2-250Ⅰ 0.20  220  900  740  180  4_Stage
4 D-6/2-250Ⅰ 0.20  250  1000  740  180  4_Stage
5 D-6.8/2-250 0.20  280  1100  740  180  4_Stage
6 D-3.4/3-250 0.30  160  750  740  140  4_Stage
7 D-3.7/3-250Ⅱ 0.30  185  800  740  140  4_Stage
8 D-4/3-250 0.30  200  900  590  180  4_Stage
9 D-4.5/3-250Ⅰ 0.30  220  1000  590  180  4_Stage
10 D-5.4/3-250Ⅱ 0.30  250  1100  740  180  4_Stage
11 D-5.9/3-250 0.30  280  1200  740  180  4_Stage
12 D-2.9/4-250Ⅰ 0.40  160  800  740  140  4_Stage
13 D-3.25/4-250 0.40  185  900  740  140  4_Stage
14 D-3.6/4-250 0.40  200  1000  590  180  4_Stage
15 D-4/4-250 0.40  220  1100  590  180  4_Stage
16 D-4.3/4-250Ⅰ 0.40  250  1200  590  180  4_Stage
17 D-4.7/4-250Ⅰ 0.40  280  1300  590  180  4_Stage
18 D-5.4/4-250Ⅰ 0.40  315  1500  740  180  4_Stage
19 D-2.9/5-250 0.50  185  950  590  180  4_Stage
20 D-3.3/5-250 0.50  200  1100  590  180  4_Stage
21 D-3.6/5-250 0.50  220  1200  590  180  4_Stage
22 D-3.9/5-250 0.50  250  1300  590  180  4_Stage
23 D-4.5/5-250 0.50  280  1400  740  180  4_Stage
24 D-2.4/6-250 0.60  160  900  740  140  4_Stage
25 D-2.6/6-250 0.60  185  1000  590  180  4_Stage
26 D-3/6-250 0.60  200  1100  980  140  4_Stage
27 D-3.6/6-250 0.60  250  1400  590  180  4_Stage
28 D-3.9/6-250 0.60  280  1500  590  180  4_Stage
29 D-4.4/6-250 0.60  315  1700  740  180  4_Stage
30 D-1.6/8-250Ⅰ 0.80  132  800  590  140  4_Stage
31 D-2.2/8-250 0.80  185  1100  740  140  4_Stage
32 D-2.4/8-250 0.80  200  1200  590  180  4_Stage
33 D-2.6/8-250 0.80  220  1300  590  180  4_Stage
34 D-3/8-250 0.80  250  1500  590  180  4_Stage
35 D-3.4/8-250 0.80  280  1700  590  180  4_Stage
36 D-3.8/8-250 0.80  315  1900  740  180  4_Stage
37 D-1.65/10-250 1.00  160  1000  590  140  4_Stage
38 D-1.95/10-250Ⅰ 1.00  185  1200  740  140  4_Stage
39 D-2.1/10-250 1.00  200  1250  590  180  4_Stage
40 D-2.3/10-250 1.00  220  1400  590  180  4_Stage
41 D-2.6/10-250 1.00  250  1600  590  180  4_Stage
42 D-2.9/10-250 1.00  280  1700  590  180  4_Stage
43 D-3.3/10-250 1.00  315  2000  740  180  4_Stage
44 D-1.4/12-250 1.20  160  1000  740  140  3_Stage
45 D-1.7/12-250 1.20  185  1200  740  140  3_Stage
46 D-1.8/12-250 1.20  200  1300  590  180  3_Stage
47 D-1.95/12-250 1.20  220  1400  590  180  3_Stage
48 D-2.5/12-250Ⅲ 1.20  280  1800  590  180  4_Stage
49 D-2.9/12-250 1.20  315  2100  740  180  4_Stage
50 D-1.5/14-250 1.40  185  1200  740  140  3_Stage
51 D-1/16-250 1.60  132  1000  740  140  3_Stage
52 D-1.3/16-250 1.60  160  1200  740  140  3_Stage
53 D-1.4/16-250 1.60  185  1300  740  140  3_Stage
54 D-1.7/16-250Ⅰ 1.60  220  1600  590  180  3_Stage
55 D-2/16-250 1.60  250  1800  590  180  3_Stage
56 D-2.5/16-250 1.60  315  2200  590  180  4_Stage
57 D-1.1/20-250 2.00  160  1300  740  140  3_Stage
58 D-1.3/20-250 2.00  185  1500  740  140  3_Stage
59 D-1.4/20-250 2.00  200  1600  740  140  3_Stage
60 D-1.5/20-250 2.00  220  1700  590  180  3_Stage
61 D-1.7/20-250 2.00  250  2000  740  180  3_Stage
62 D-1.9/20-250 2.00  280  2200  740  180  3_Stage
63 D-2/20-250 2.00  315  2400  740  180  3_Stage
64 D-0.84/25-250 2.50  132  1200  590  140  3_Stage
65 D-0.98/25-250 2.50  160  1400  590  140  3_Stage
66 D-1.1/25-250 2.50  185  1600  740  140  3_Stage
67 D-1.25/25-250 2.50  200  1800  590  180  3_Stage
68 D-1.3/25-250 2.50  220  1900  590  180  3_Stage
69 D-1.5/25-250 2.50  250  2200  590  180  3_Stage
70 D-1.6/25-250Ⅰ 2.50  280  2300  740  180  3_Stage
71 D-1.88/25-250 2.50  315  2700  740  180  3_Stage
72 D-1.3/30-250 3.00  250  2200  590  180  2_Stage
73 D-1.45/30-250 3.00  280  2400  590  180  2_Stage
74 D-1.75/30-250 3.00  315  3000  740  180  2_Stage
75 D-0.55/35-250 3.50  110  1100  740  140  2_Stage
76 D-0.65/35-250 3.50  132  1300  740  140  2_Stage
77 D-0.75/35-250 3.50  160  1500  740  140  2_Stage
78 D-0.9/35-250 3.50  185  1800  740  140  2_Stage
79 D-0.95/35-250 3.50  200  1900  740  140  2_Stage
80 D-1.25/35-250 3.50  250  2400  590  180  2_Stage
81 D-1.3/35-250Ⅱ 3.50  280  2600  740  180  2_Stage
82 D-1.55/35-250Ⅰ 3.50  315  3100  740  180  2_Stage
83 D-0.75/40-250 4.00  160  1700  740  140  2_Stage
84 D-0.9/40-250 4.00  185  2100  740  140  2_Stage
85 D-1.2/40-250 4.00  250  2600  740  180  2_Stage
86 D-1.45/40-250 4.00  315  3300  740  180  2_Stage
87 D-1.15/50-250 5.00  280  3200  590  180  2_Stage
88 D-1.2/60-250 6.00  280  4000  590  180  2_Stage
89 D-1.1/70-250 7.00  280  4200  590  180  2_Stage
90 D-1.1/75-250 7.50  280  4500  590  180  2_Stage
